Roots Blower Positive Pressure Air Source
Roots blower is a positive displacement blower that compresses and transports gas through the relative motion of two or three impellers (rotors) within a cylinder. It can produce stable and continuous air flow and is used as a positive pressure air source in pneumatic conveying systems.
Principle
The working principle of a Roots blower is based on the rotation of two or three impellers inside it. When the motor drives one of the rotors to rotate, the other rotor rotates synchronously at the same speed but in opposite directions through a synchronized gear. As the rotor rotates, a negative pressure area is formed at the air inlet, and external air (or material and air mixture) is sucked into the air inlet cavity; then, the blades of each rotor, the wall panel, and the casing form a sealed cavity, which is rotated The volume is continuously changed during the process, compressing the inhaled gas and pushing it to the exhaust port, thereby forming a continuous air flow.
Parameter
Single fuel tank: YCSR-(50/65/80/100/125/150/175/200/250/300)
High-pressure double fuel tank: YCSR-(80/100/125/150/200/250/300)H
Intensive: YCSR-MJ(50/65/80/100/125/150/175/200/250)
Roots vacuum pump: YCSR-(80/100/125/150/200/250/300)V
| MODEL | Air capacity (m³/min) | Air pressure(Kpa ) | Motor(Kw) | RPM | Dimension(mm) | Weight(kg) |
| YCSR50 | 0.65-2.75 | 9.8-58.8 | 0.75-5.5 | 1100-2300 | 880*580*560 | 72 |
| YCSR50H | 0.45-2.31 | 63.7-98 | 3-7.5 | 1100-2300 | 880*580*560 | 82 |
| YCSR65 | 0.94-3.80 | 9.8-58.8 | 0.75-7.5 | 1100-2300 | 920*630*594 | 84 |
| YCSR65H | 0.78-3.09 | 63.7-98 | 0.75-11 | 1100-2300 | 920*630*594 | 98 |
| YCSR80 | 2.34-6.13 | 9.8-58.8 | 2.2-11 | 1140-2100 | 1150*720*664 | 130 |
| YCSR80H | 1.82-5.26 | 63.7-98 | 5.5-15 | 1140-2100 | 1150*720*664 | 140 |
| YCSR100 | 3.25-9.62 | 9.8-58.8 | 3–5 | 1060-2100 | 1250*780*764 | 156 |
| YCSR100H | 2.65-8.65 | 63.7-98 | 7.5-22 | 1060-2100 | 1250*780*764 | 170 |
| YCSR125 | 5.35-17.57 | 9.8-58.8 | 3–30 | 980-1830 | 1450*950*800 | 226 |
| YCSR125H | 4.64-12.23 | 63.7-98 | 45260 | 980-2000 | 1450*950*800 | 240 |
| YCSR150 | 10.37-29.61 | 9.8-58.8 | 7.5–55 | 810-1900 | 1500*720*934 | 384 |
| YCSR150H | 9.53-28.35 | 63.7-98 | 22–75 | 810-1900 | 1500*720*934 | 400 |
| YCSR175 | 19.65-38.67 | 9.8-58.8 | 11–55 | 970-1620 | 1500*720*1084 | 480 |
| YCSR200 | 19.65-59.20 | 9.8-58.8 | 15–90 | 740-1480 | 1750*930*1220 | 670 |
| YCSR200H | 17.96-56.92 | 63.7-98 | 37–110 | 740-1480 | 1750*930*1220 | 700 |
| YCSR250 | 54.77-97.52 | 9.8-58.8 | 30–110 | 1100-1480 | 2000*1000*1220 | 850 |
| YCSR250H | 58-93.70 | 63.7-98 | 110–185 | 990-1480 | 2000*1000*1220 | 880 |
| YCSR300 | 87.10-138.10 | 9.8-58.8 | 45–185 | 990-1480 | 2100*1200*1300 | 950 |
Features and Advantages
- Forced air supply characteristics: Even if the pressure is unstable, constant air volume delivery can be maintained.
- Wide pressure range: single-stage pressure can reach 98Kpa, and the maximum air volume can reach 400m³/min, meeting the needs of various working conditions.
- The structure is simple and reliable: it is also easier to maintain, reducing the user’s operating costs.
- Price advantage: Compared with other types of fans, Roots blowers are more economical and suitable for small and medium-sized enterprises.
- Remarkable energy-saving effect: There are some Roots blowers on the market that incorporate frequency conversion technology, which further improves energy efficiency.
- Strong adaptability: can handle different types and sizes of materials, easy to install and maintain.

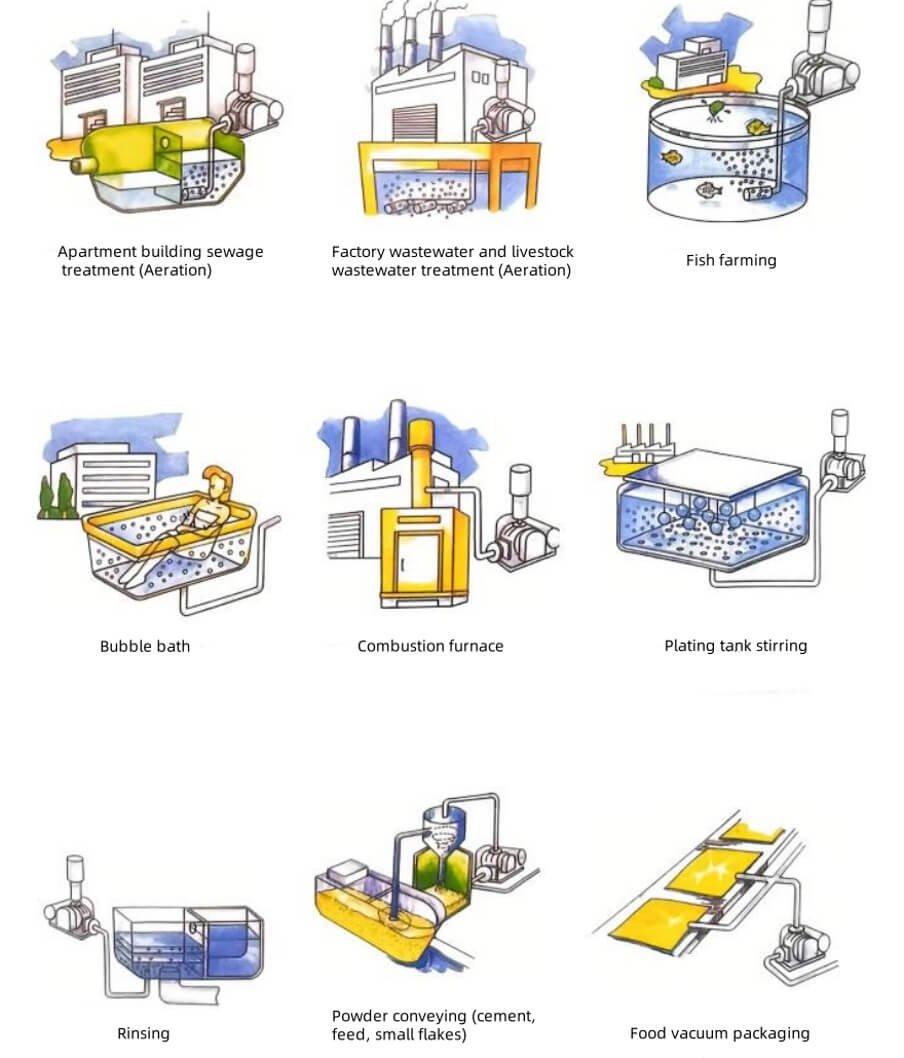

Usage Scenarios
Roots blowers are widely used in many industries, especially where positive pressure is required to convey materials. Typical applications include but are not limited to mining, building materials, metallurgy, food processing, chemical industry, electric power, environmental protection engineering, etc.
